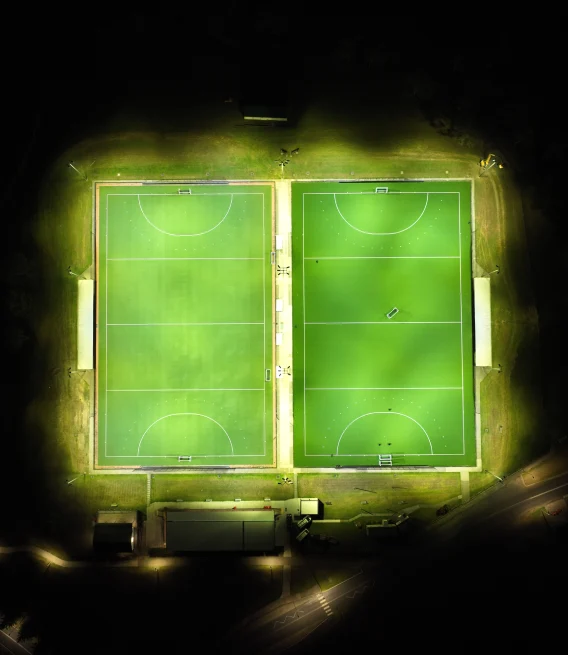

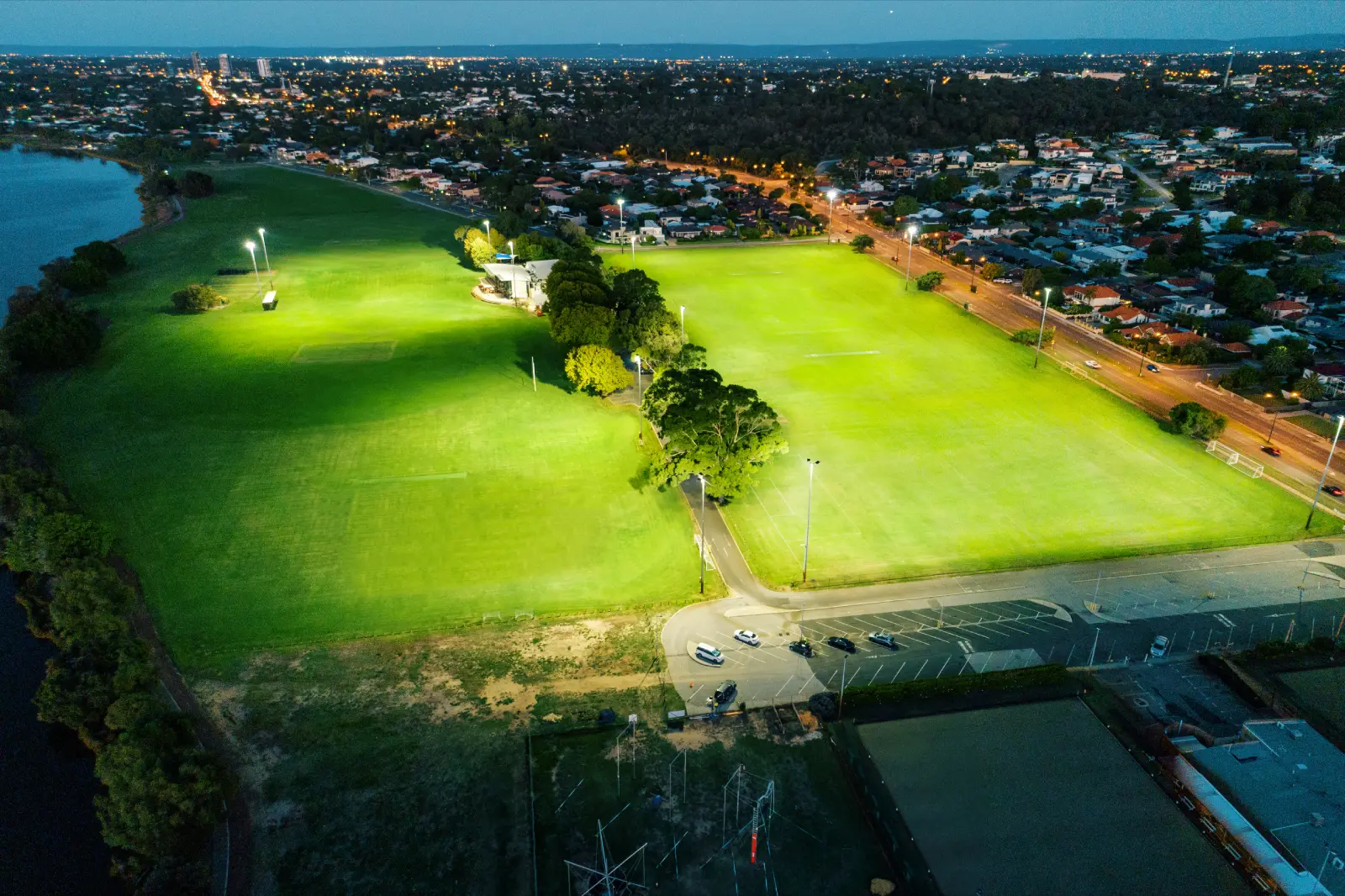

HOCKEY FIELD LIGHTING

Legacy Lighting provides high-performance hockey field lighting designed for clubs, councils and sporting venues across Australia.

Our Australian-made systems deliver uniform visibility, low glare and controlled spill for safe, consistent play.

Purpose-Built for Hockey

Hockey requires strong, even coverage across large playing areas. Fast ball movement, long passing distances and wide field visibility mean lighting must perform with clarity and consistency.

Our LED lights for hockey applications are engineered with advanced optics to deliver:

Uniform illumination across full-size fields
Long-throw performance for wide playing areas
Reduced glare for players, officials and spectators
Controlled spill light to minimise impact on surrounding areas
Durable Australian-made construction for long-term reliability

Meeting Australian Hockey Field Lighting Standards

When lighting a hockey field, it is important to meet the Australian Standards not only for the minimum average lux required, but also for uniformity, glare and overall field consistency.

Legacy Lighting designs hockey fields in accordance with AS2560.2.7, ensuring safe and compliant illumination for training, club competition and elite play.

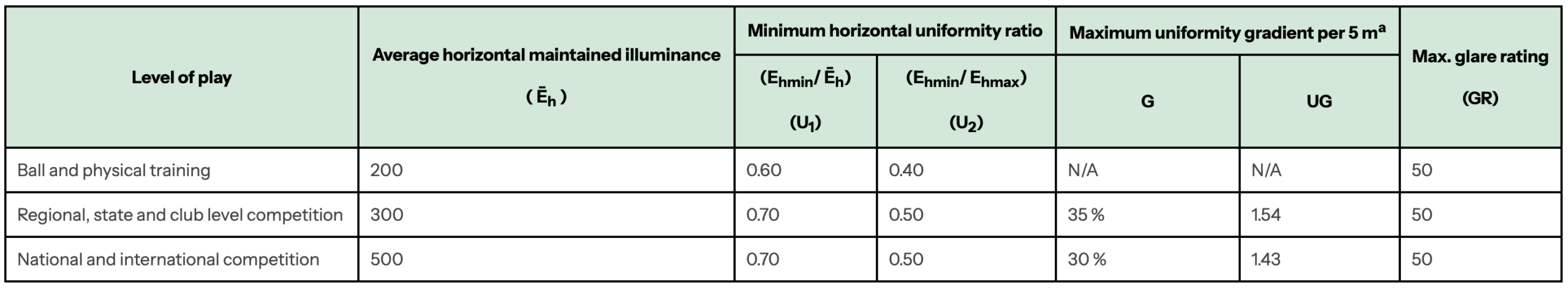

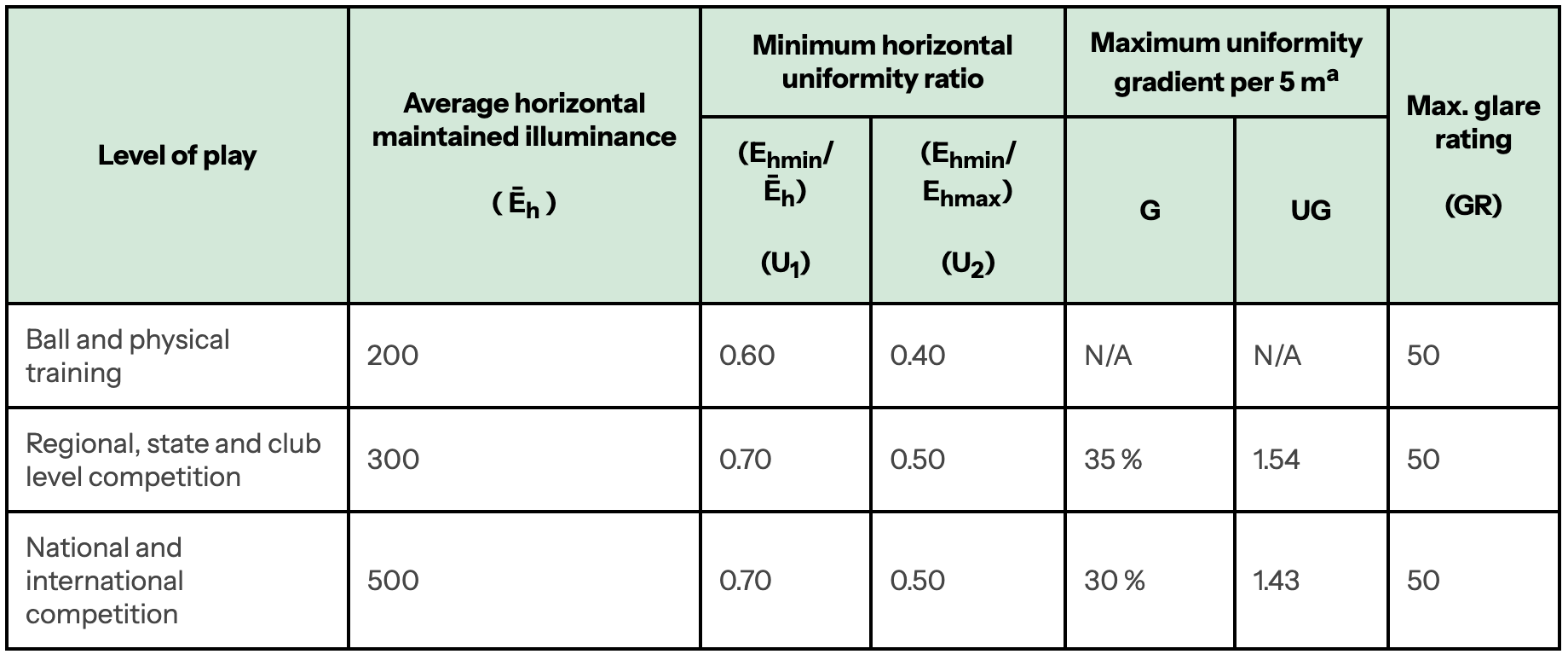

Level of Play	Maintained Average Lux	Uniformity	Minimum CIE	Minimum CIE	Minimum CIE	Minimum CIE	Minimum CIE
Ball & Physical Training	200 lux	0.60	0.40	N/A	N/A	50	65
Regional, State & Club Competition	300 lux	0.70	0.50	35%	1.54	50	65
National & International Competition	500 lux	0.70	0.50	30%	1.43	50	65

Notes:

Uniformity gradient applies only to side-line points, not corners.
Higher lighting levels may be required for elite or broadcast conditions.

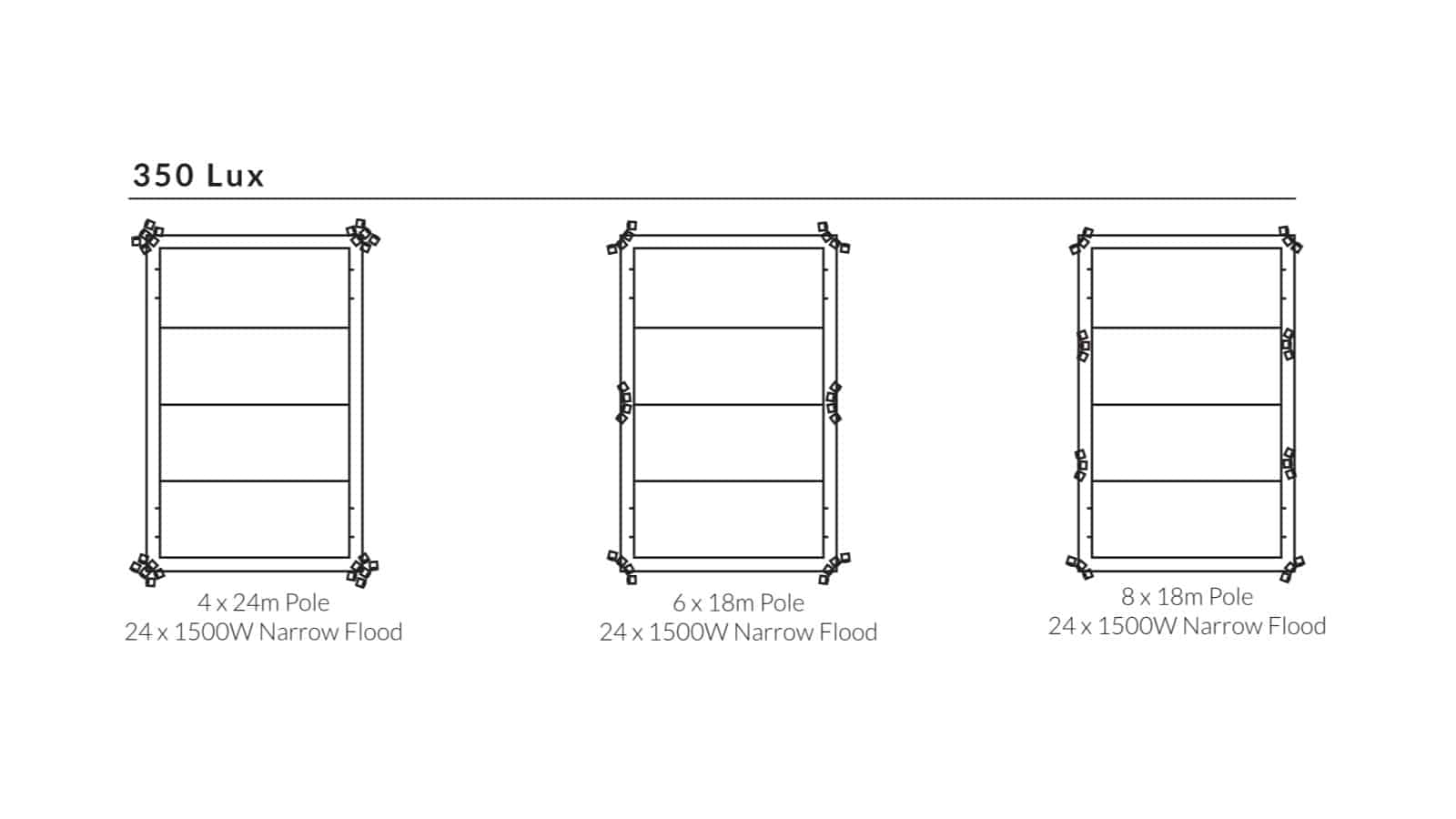

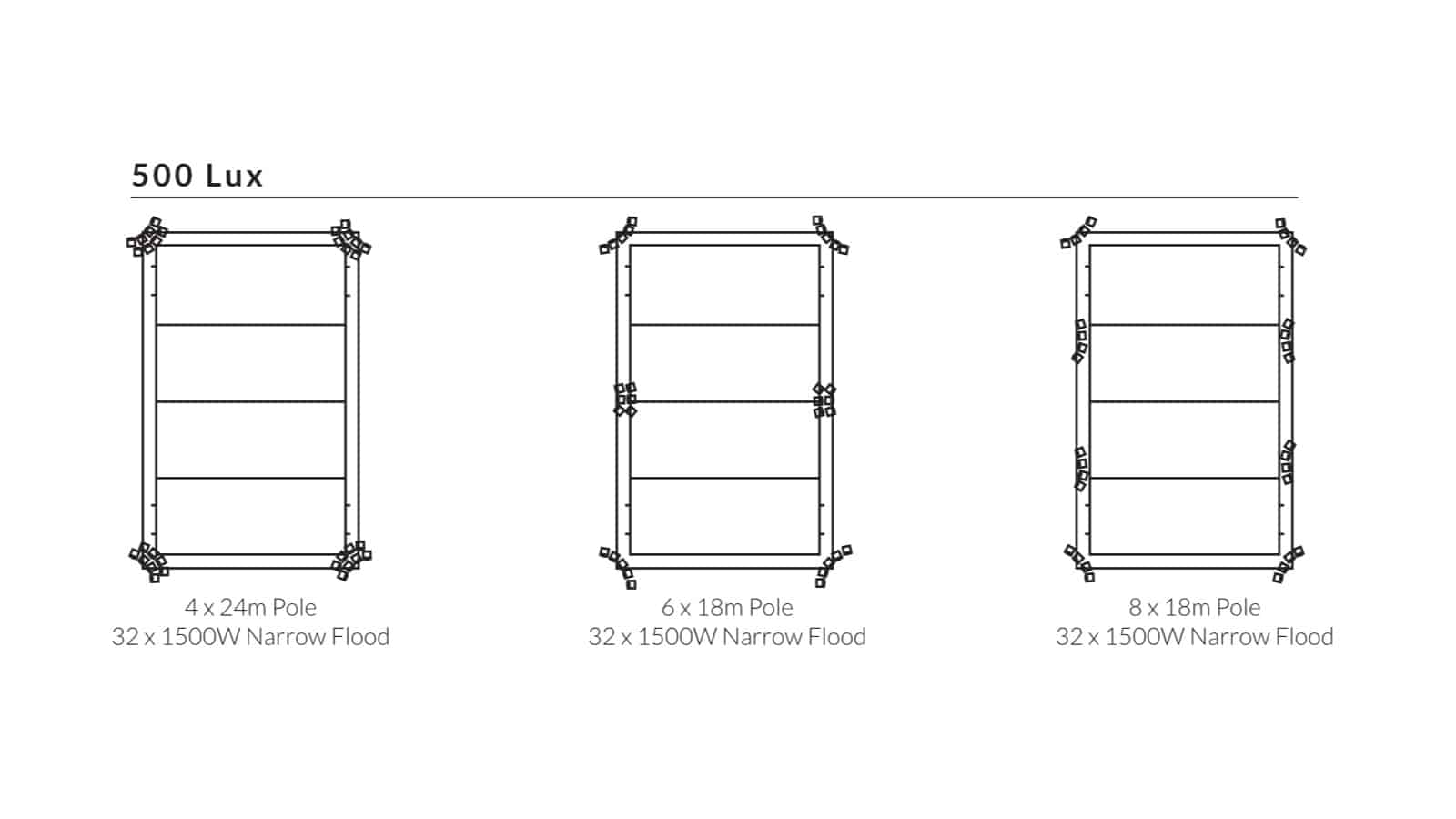

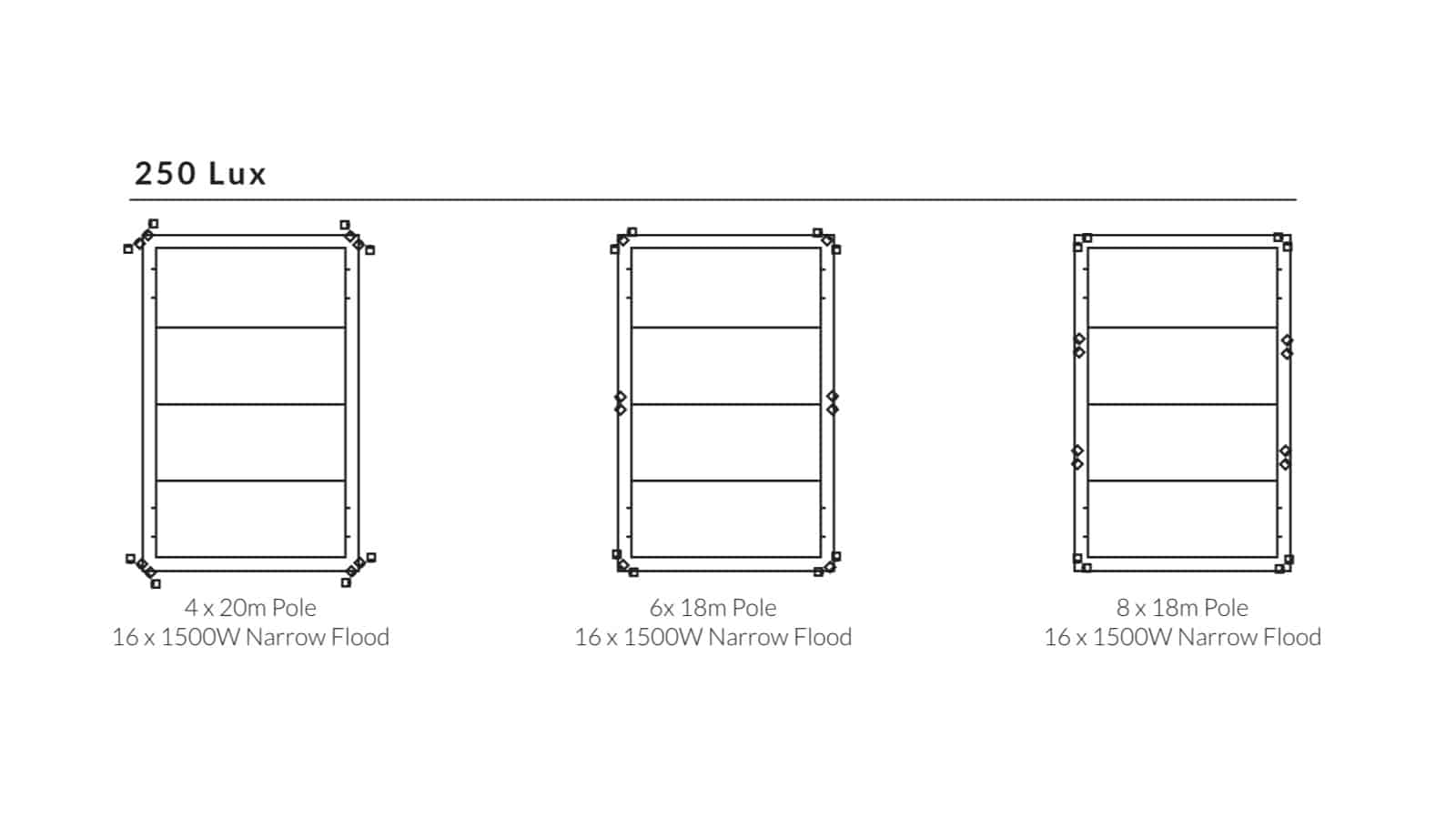

The templates below allow you to get an idea of the number of lights required to comply with the standards in each category. This is a guide only and should you need a more detailed quote or assessment please fill in the Lighting Template pdf and email the completed form to estimates@legacysportlighting.com.
